Storage Cabinet & Bookshelf

Module

• Decorative stuffs images are staged
• Measure : mm

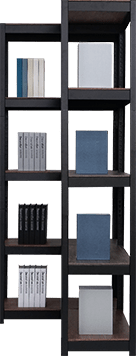

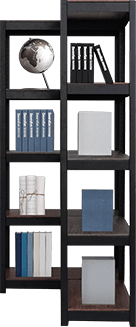

W800 SERIES

A Type (H1950, 5Tier)

1	2	3	4
Door	Open	Basic	Cornet
Depth(300)
W800 X D300 X H1950	W800 X D300 X H1950	W800 X D300 X H1950	ㅤ+ W800 X D300 X H1950 + W800 X D300 X H1950
Depth(400)
W800 X D400 X H1950	W800 X D400 X H1950	W800 X D400 X H1950	ㅤ+ W800 X D400 X H1950 + W800 X D400 X H1950

1200		400
A Type (H1950, 5Tier)
W1200 Series		W400 Series
29		36	37
Basic		Open	Basic
Depth(300)
W1200 X D300 X H1950		W400 X D300 X H1950	W400 X D300 X H1950
Depth(400)
W1200 X D400 X H1950		W400 X D400 X H1950	W400 X D400 X H1950
B Type (H1800, 5Tier)
W1200 Series		W400 Series
30		38	39
Basic		Open	Basic
Depth(300)
W1200 X D300 X H1800		W400 X D300 X H1800	W400 X D300 X H1800
Depth(400)
W1200 X D400 X H1800		W400 X D400 X H1800	W400 X D400 X H1800
C Type (H1500, 4Tier)
W1200 Series		W400 Series
31		40	41
Basic		Open	Basic
Depth(300)
W1200 X D300 X H1500		W400 X D300 X H1500	W400 X D300 X H1500
Depth(400)
W1200 X D400 X H1500		W400 X D400 X H1500	W400 X D400 X H1500
D Type (H1200, 4Tier)
W1200 Series		W400 Series
32		42	43
Basic		Open	Basic
Depth(300)
W1200 X D300 X H1200		W400 X D300 X H1200	W400 X D300 X H1200
Depth(400)
W1200 X D400 X H1200		W400 X D400 X H1200	W400 X D400 X H1200
E Type (H900, 3Tier)
W1200 Series		W400 Series
33		44	45
Basic		Open	Basic
Depth(300)
W1200 X D300 X H900		W400 X D300 X H900	W400 X D300 X H900
Depth(400)
W1200 X D400 X H900		W400 X D400 X H900	W400 X D400 X H900
F Type (H750, 3Tier)
W1200 Series		W400 Series
34		46	47
Basic		Open	Basic
Depth(300)
W1200 X D300 X H750		W400 X D300 X H750	W400 X D300 X H750
Depth(400)
W1200 X D400 X H750		W400 X D400 X H750	W400 X D400 X H750
G Type (H600, 2Tier)
W1200 Series		W400 Series
35		48	49
Basic		Open	Basic
Depth(300)
W1200 X D300 X H600		W400 X D300 X H600	W400 X D300 X H600
Depth(400)
W1200 X D400 X H600		W400 X D400 X H600	W400 X D400 X H600

ACCESSORIES OPTION

• Mix and match various accessories to
  personalize your space

OPTION .1

Option 1
Add Door (Green/Blue, Coral/Mint)
Make your own cabinet with additional door

800 X 300 Door(9T)

• Color : green/blue/coral/mint
• Size : W800 X D300 X H400

800 X 400 Door(9T)

• Color : green/blue/coral/mint
• Size : W800 X D400 X H400

OPTION .2

Option 2
Add Door (Natural Wood / Light Wood)
Make your own cabinet with 3 sides blocking

800 X 300 Door

• Color : Natural Wood / Light Wood
• Size : W800 X D300 X H400

800 X 400 Door

• Color : Natural Wood / Light Wood
• Size : W800 X D400 X H400

400 X 300 Door

• Color : Natural Wood / Light Wood
• Size : W400 X D300 X H400

400 X 400 Door

• Color : Natural Wood / Light Wood
• Size : W400 X D400 X H400

Frame	Shelf/Cover	Door
		Front	Back
Black	Natural Wood A luxurious color with the natural pattern of trendy wood.	Garden Green Healing and relaxation for your busy, hectic life. The color that brings the greenery to your personal space.	Natural Wood
		Sapphire Blue Harmonious with other colors. Another healing color that reminds you of nature as much as Greenery does.
White	Light Wood The bright and light wood with simple pattern of wood to make the space look larger	Living Coral The Beautiful corals in the blue sea. The trendy color of 2019 Pantone for comfort and coziness.	Light Wood
		Aqua Mint Fresh and calm for emotional tranquility ‘Genderless’ color that meets anyone’s tasts.

OPTION .3

Option 3
Add Shelf (Natural Wood / Light Wood)
Add shelf in case of keeping many things

400 X 300

• Color : Natural Wood / Light Wood
• Size : W400 X D300, 9T

800 X 300

• Color : Natural Wood / Light Wood
• Size : W800 X D300, 9T

1200 X 300

• Color : Natural Wood / Light Wood
• Size : W1200 X D300, 9T

400 X 400

• Color : Natural Wood / Light Wood
• Size : W400 X D400, 9T

800 X 400

• Color : Natural Wood / Light Wood
• Size : W800 X D400, 9T

1200 X 400

• Color : Natural Wood / Light Wood
• Size : W1200 X D400, 9T

OPTION .4

Option 4
Add Hanger (Black / White)
Transform the shelf to the wardrobe

400 X 400

• Color : Black / White
• Size : W400 X D400

800 X 400

• Color : Black / White
• Size : W800 X D400

1200 X 400

• Color : Black / White
• Size : W1200 X D400

OPTION .5

Option 5
Mesh Board (Black / White)
Hang your hats, bags, scarves and other accessories neatly

800*400 Mesh Board Set

MESH BOARD
(800X400) x 1ea

BOARD BRACKET
x 4ea

PLATE HOOK
x 2ea

S-HOOK
x 2ea

– Color : Black / White, Size : W800 X D400

SPECIFICATION

Basic/Open/Door

Corner

Detail Size

measure : mm

Item		W	D		H
			300mm	400mm	A	B	C	D	E	F	G
W800	Basic	800 (outer818) (innter738)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)
	Open	800 (outer818) (innter738)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)
	Door	800 (outer818) (innter738)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)
	Corner Left	800 (outer818) (innter738)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)
	Corner Left	800 (outer818) (innter738)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)
W400	Basic	400 (outer418) (innter338)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)
	Open	400 (outer418) (innter338)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)
W1200	Basic	1200 (outer1218) (innter1138)	300 (outer318) (innter238)	400 (outer418) (innter338)	1950 (outer1956)	1800 (outer1806)	1500 (outer1506)	1200 (outer1206)	900 (outer906)	750 (outer756)	600 (outer600)

* Dimension in parenthesis is practical size

Frame Color

• White / Black

Shelf Color

• Black Frame

Shelf	Natural Wood(9T)
Back & Side Over	Natural Wood(6T)
Door	Green & Natural Wood(9T) Blue & Natural Wood(9T)

Materials

• Steel: Post, Support Beam, Hanger bar, Upper rail support beam, Corner Connection Bracket, Corner support beam, Mesh Board, Level foot bracket, post fixing clip, Hanger support beam
• PP: Post connecting bracket, Door Handle
• PE+STEEL: Wall fixing bracket, screw
• ABS: Lower Rail, Mesh board bracket, Cover Fixing bracket
• Elastomer: Corner beam cap, safety cap
• Stainless Steel: S-Hook
• MDF (E0, E1 grade): Shelf, Door, back & Slide cover

size

• W W(400/800/1200) X D(300/400) X H(1950/1800/1500/1200/900/750/600)
• Height/Tier : 1950mm(5Tier, 750+600+600 / 3 Posts connecting)
  • 1800mm(5Tier, 900+900 / 2 Posts connecting)
  • 1500mm(4Tier, 750+750 / 2 Posts connecting)
  • 1200mm(4Tier, 600+600 / 2 Posts connecting)
  • 900mm(3Tier, 900 / 1 Post)
  • 750mm(3Tier, 750 / 1 Post)
  • 600mm(2Tier, 600 / 1 Post)

Types	(H) (W)	A	B	C	D	E	F	G
		1950 (750+600+600)	1800 (900+900)	1500 (750+750)	1200 (600+600)	900	750	600
		Connecting Post				Single Post
		5Tier		4Tier		3Tier		2Tier
Door Module	Basic w800
Open Module	Basic w800
	Slim w400
Basic Module	Basic w800
	Slim w400
	Wide w1200
Corner Module	Basic w800+w800

Max Load Capacity (equal loading)

• 100KG/per shelf
• 40KG/per Hanger (400/800mm)
• 60KG/per Hanger (1200mm)

Manufacturerㅤ

• Speedrack Co., Ltd.
